产品概述
特色应用系列针对功率驱动、Type-C数据功率二合一、高速数据通信等特定应用场景，集成相匹配的专用外设与高性能通信接口，如高压预驱、专用功率外设、PDUSB、5Gbps超高速USB3.0、480Mbps高速USB2.0、百兆/千兆以太网等。本系列MCU/SoC采用青稞RISC-V内核，通过高集成度的单芯片方案精准匹配应用需求、降低产品设计复杂度，加速产品开发。

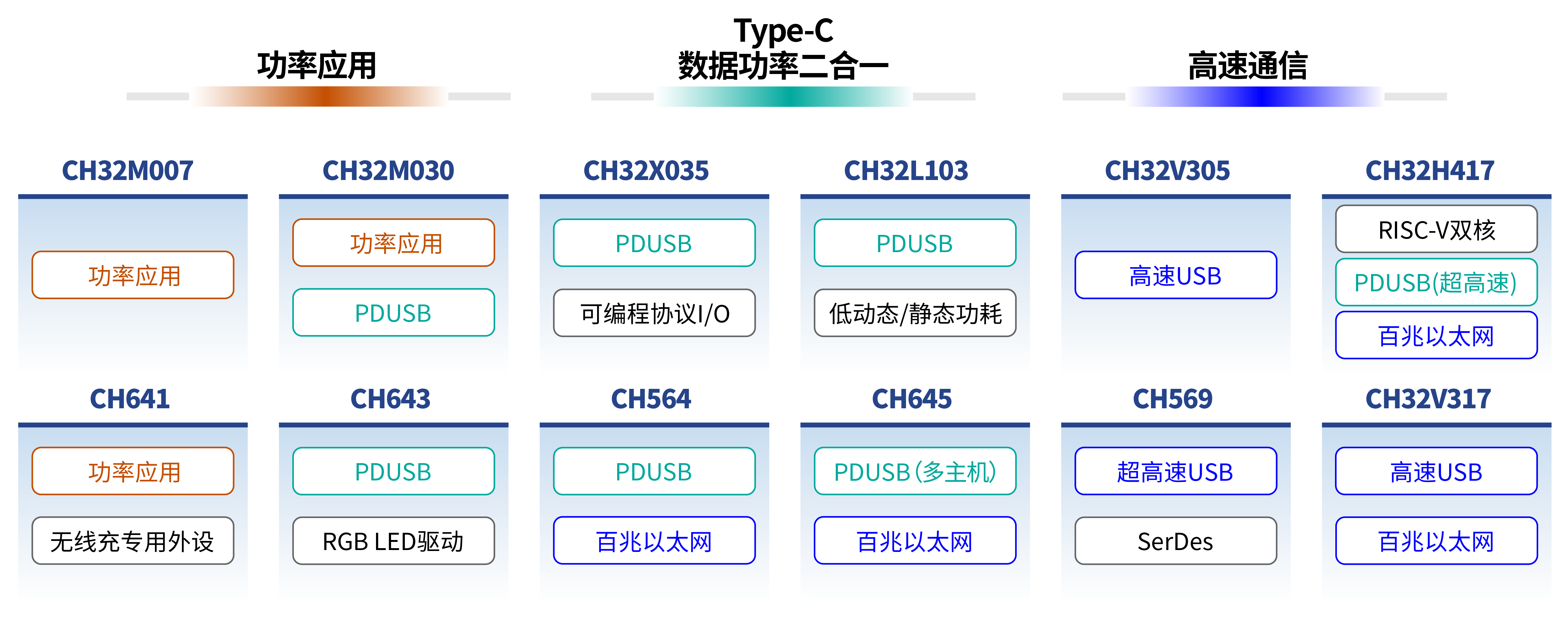

产品阵容
产品选型
Part NO. | Feature | Freq | Flash | RAM | USB H/D(含PHY) | ETH | DVP | SDIO | OPA | CMP | UART | SPI | Timer | CAP/PWM | ADC | I/O | Others | VDD | Package |
|---|

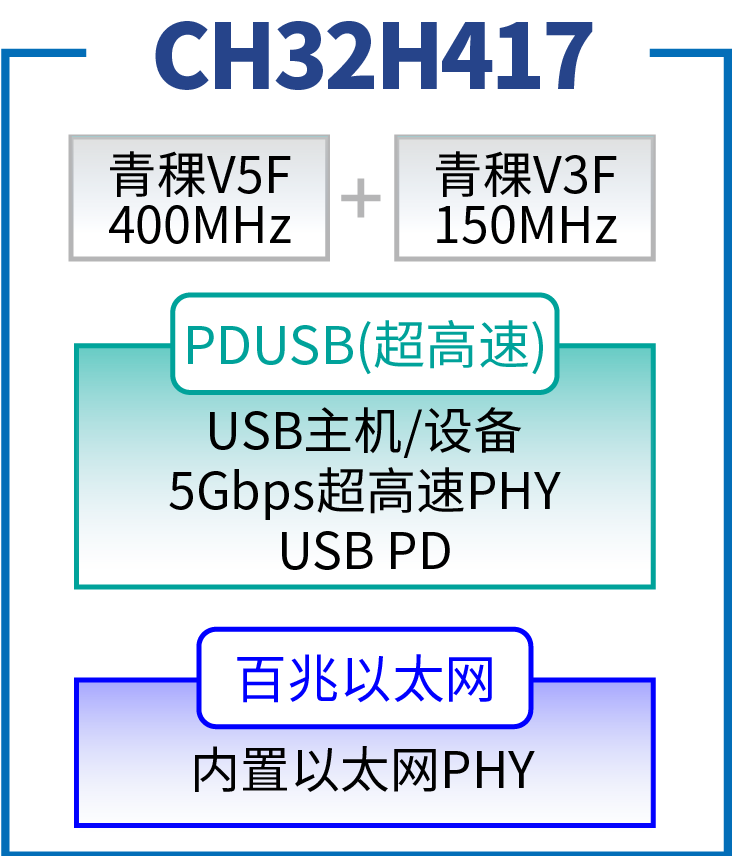

双核，PDUSB USB3.0超高速，内置PHY 实测速度每秒450M字节 百兆以太网，内置PHY 20Msps HSADC | 400+150MHz | 960K | 896K | 5Gbps 480Mbps 12Mbps | 100M | 1 | 1 | 3 | 1 | 8 | 4 | 4*32b 10*16b | 40/42 | 2 Unit 16*12b | 95 | DFSDM/LTDC/DVP/SDMMC QuadSPI/I3C/UHSIF/SAI SWPMI/LPTIM/RNG/CAN FMC/PIOC/Type-C PD | 3.3 | QFN128/QFN88/QFN68 QFN60X6 | |

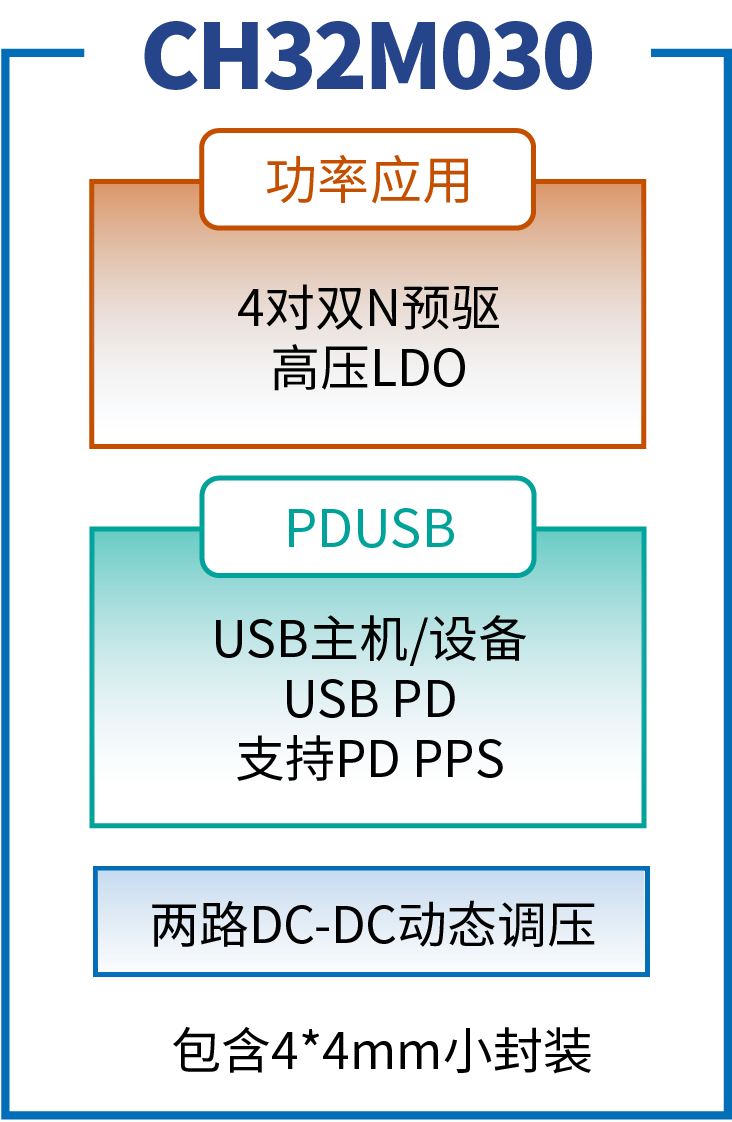

4对28V NN预驱+高压LDO 青稞内核针对电机算法优化 PDUSB，Type-C动态调压 模拟资源丰富 | 72MHz | 64K | 12K | 12Mbps | - | - | - | 4 | 3 | 1 | 1 | 3*16b | 10/10 | 20*12b | 36 | 4 Pair NN Gate driver ISINK/BC/Type-C PD | VHV up to 30 | QFN48X7_A/QFN48/LQFP48 | |
2对28V NN预驱+高压LDO 青稞内核针对电机算法优化 PDUSB，Type-C动态调压 模拟资源丰富，4*4mm小封装 | 72MHz | 64K | 12K | 12Mbps | - | - | - | 3 | 2 | 1 | 1 | 3*16b | 10/10 | 16*12b | 24 | 2 Pair NN Gate driver ISINK/BC/Type-C PD | VHV up to 30 | QFN32 | |
3对28V NN预驱+高压LDO 青稞内核针对电机算法优化 PDUSB，Type-C动态调压 模拟资源丰富 | 72MHz | 64K | 12K | 12Mbps | - | - | - | 3 | 2 | 1 | - | 3*16b | 8/8 | 11*12b | 17 | 3 Pair NN Gate driver ISINK/BC/Type-C PD | VHV up to 30 | QSOP28 | |

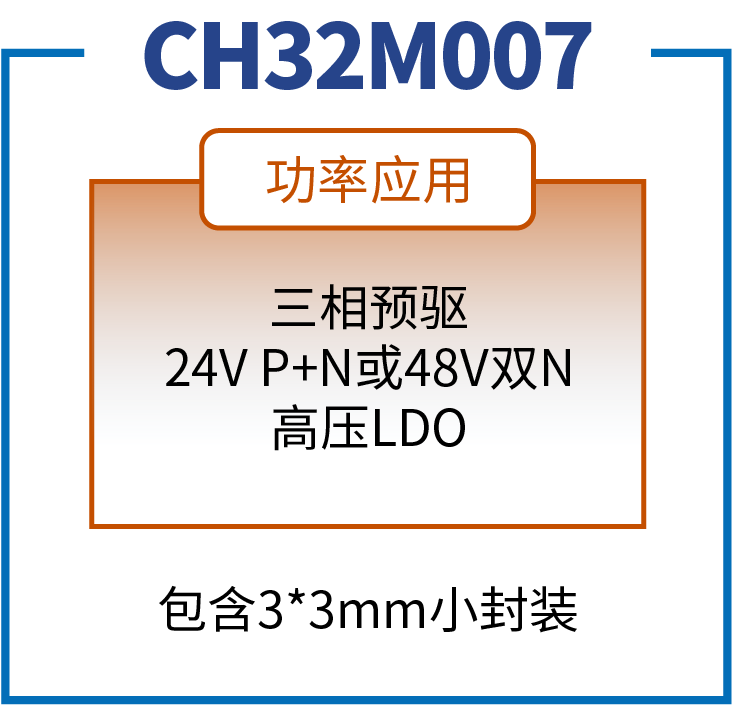

24V PN预驱+高压LDO 3*3mm超小封装 | 48MHz | 65K | 8K | - | - | - | - | 1 | 2 | 2 | 1 | 3*16b | 8/8 | 7*12b | 16 | 3 Pair PN Gate driver | VHV up to 28 | QFN26C3/QSOP24 | |
48V NN预驱+高压LDO 全N管驱动，支持大电流 | 48MHz | 65K | 8K | - | - | - | - | 1 | 2 | 2 | 1 | 3*16b | 7/7 | 7*12b | 12 | 3 Pair NN Gate driver | VHV up to 56 | QSOP28 | |
24V PN预驱+高压LDO 低动态/静态功耗，PDUSB | 96MHz | 64K | 20K | 12Mbps | - | - | - | 1 | 2 | 4 | 1 | 1*32b 4*16b | 11/11 | 10*12b | 18 | 3 Pair PN Gate driver LPTIM/CAN/Type-C PD | VHV up to 28 | QSOP28 | |

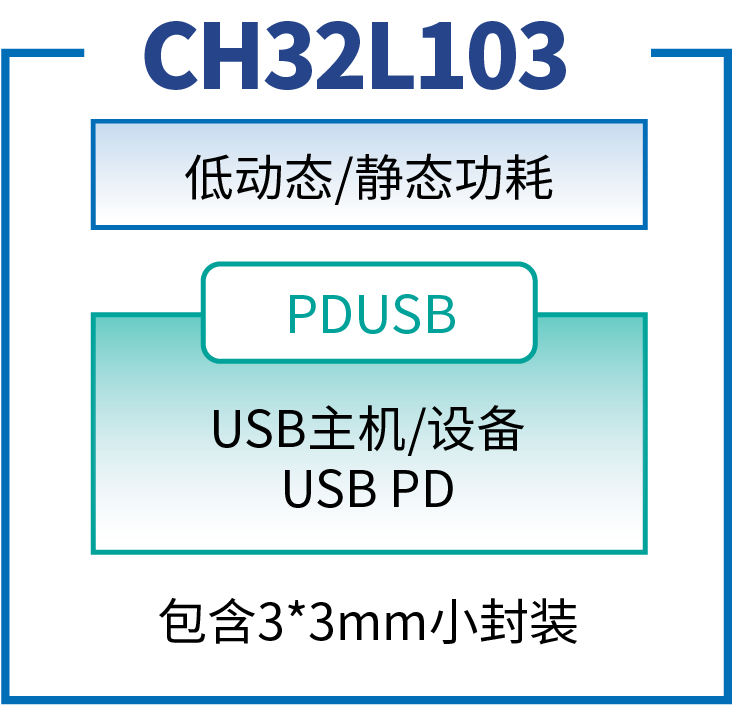

低动态/静态功耗，PDUSB | 96MHz | 64K | 20K | 12Mbps | - | - | - | 1 | 3 | 4 | 2 | 1*32b 4*16b | 16/17 | 10*12b | 37 | LPTIM/CAN/Type-C PD | 3.3 | LQFP48/QFN32/QSOP28 QFN20/TSSOP20 | |
5V全桥驱动，2对PN 电流采样及信号放大模块 无需自举电源，体积小 | 48MHz | 65K | 8K | - | - | - | - | 1 | 2 | 1 | - | 3*16b | 7/8 | 4*12b | 7 | 5V Full-bridge driver Current-Sense ASK decoder | 2.5/3.3/5.0 | QFN16 | |

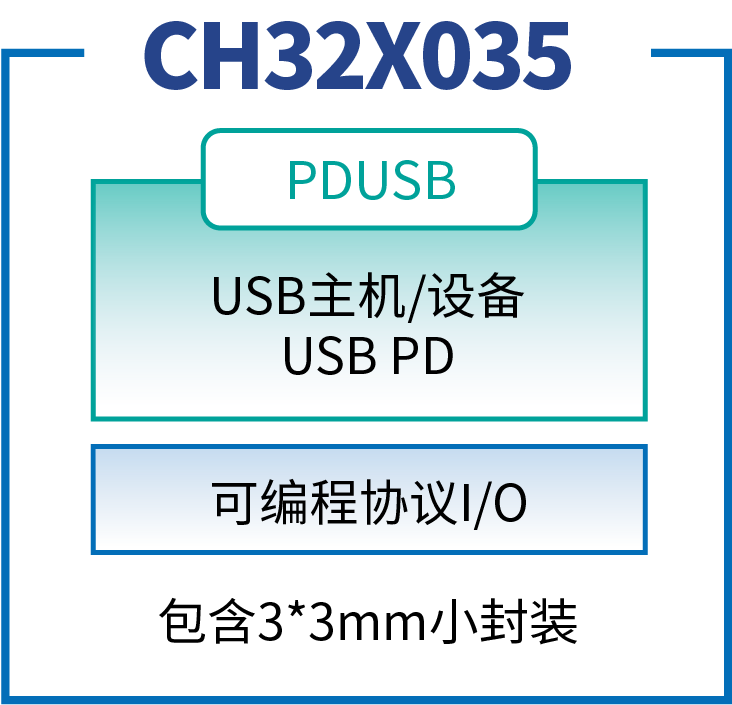

PDUSB+可编程协议I/O | 48MHz | 65K | 20K | 12Mbps | - | - | - | 2 | 3 | 4 | 1 | 3*16b | 10/10 | 14*12b | 60 | PIOC/Type-C PD | 3.3/5.0 | LQFP64M/LQFP48/QFN28 QSOP28/QFN20/TSSOP20 | |
USB+可编程协议I/O | 48MHz | 65K | 20K | 12Mbps Device | - | - | - | 2 | 2 | 4 | 1 | 3*16b | 7/7 | 10*12b | 18 | PIOC | 3.3/5.0 | TSSOP20 | |

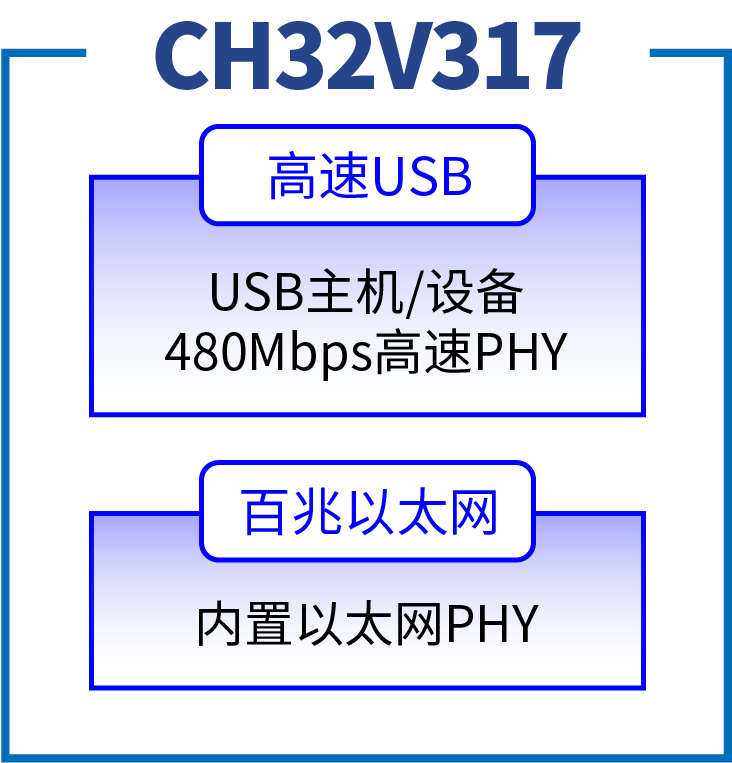

高速USB，内置PHY 百兆以太网，内置PHY | 144MHz | 256K | 64K | 480Mbps OTG | 100M | 96MHz | 1 | 4 | - | 8 | 3 | 10*16b | 32/32 | 16*12b | 70 | TRNG/CAN | 3.3 | LQFP100/QFN68 | |

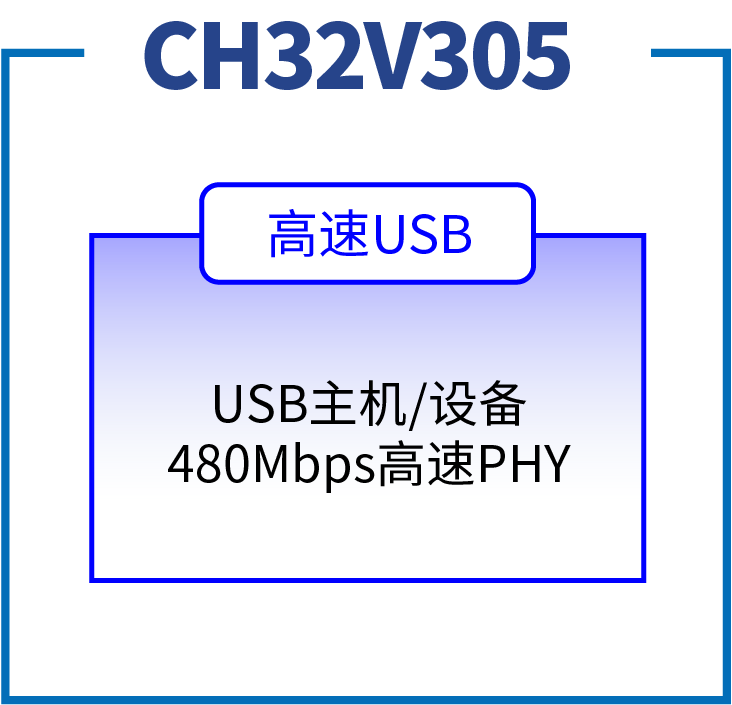

高速USB，内置PHY | 144MHz | 128K | 32K | 480Mbps OTG | - | - | 1 | 4 | - | 5 | 3 | 10*16b | 29/29 | 16*12b | 51 | TRNG | 2.5/3.3 | LQFP64M/LQFP48/QFN28 TSSOP20 | |

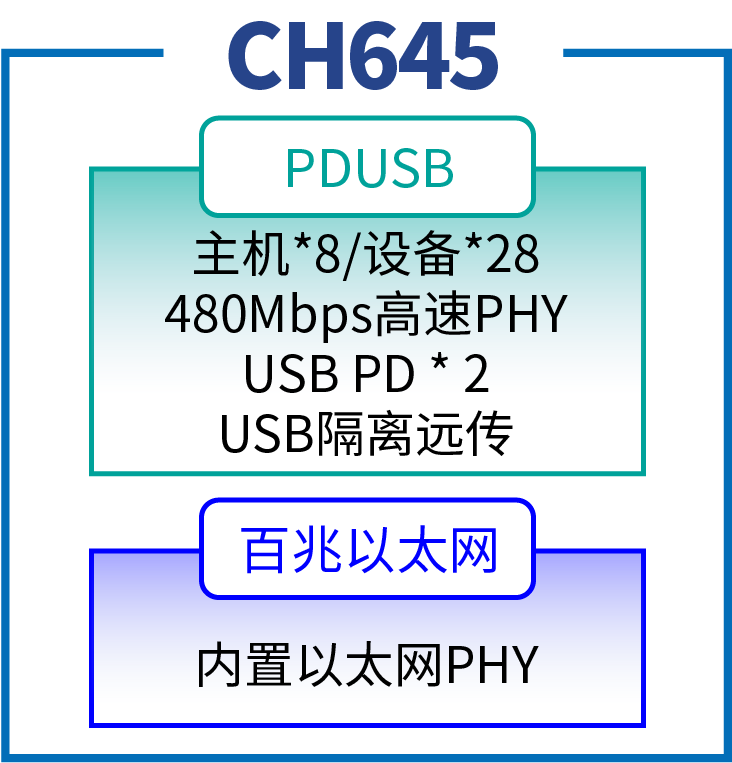

8个USB主机+28个USB设备 USB隔离远传，PDUSB 百兆以太网，内置PHY | 125MHz | 224K | 80K | 480Mbps | 100M | - | 1 | - | - | 2 | 2 | 2*16b | 8/8 | - | 40 | Type-C PD | 3.3 | QFN68/QFN32 | |

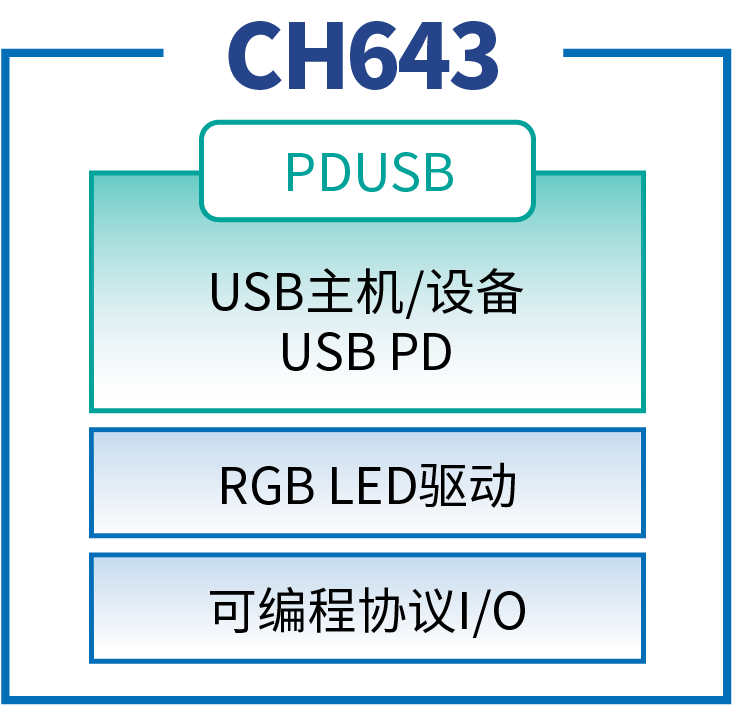

RGB LED驱动+可编程协议I/O PDUSB | 48MHz | 62K | 20K | 12Mbps | - | - | - | 2 | 3 | 4 | 1 | 3*16b | 10/10 | 15*12b | 69 | LEDPWM OPA/CMP PIOC/Type-C PD | 3.3/5.0 | QFN80/LQFP64/LQFP48 QSOP28 | |

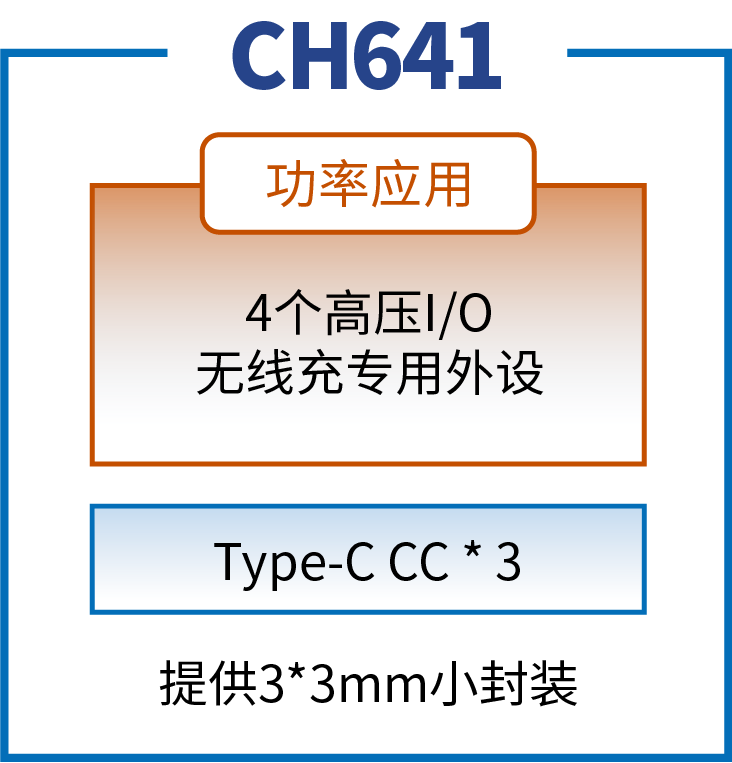

4个高压驱动I/O 3个Type-C PD CC 12V PD无线充 | 48MHz | 16K | 2K | - | - | - | - | - | - | 1 | - | 2*16b | 5/5 | 15*10b | 25 | QII/ISP BC/Type-C PD | 5-12 | QFN28/QFN20/QFN16 | |

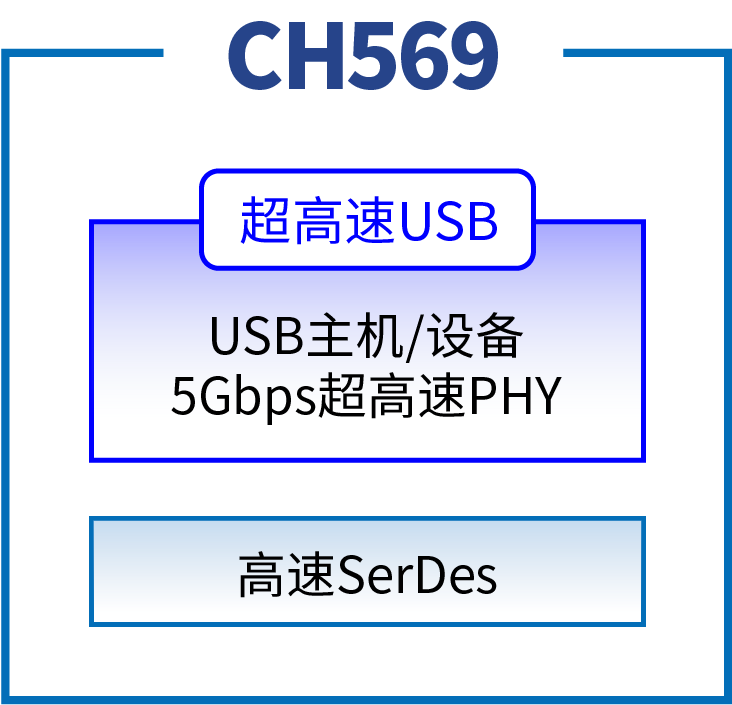

USB3.0超高速+SerDes | 120MHz | 448K | 48K/80K | 5G/480Mbps | 1000M | 96MHz | 1 | - | - | 4 | 2 | 3*26b | 3/7 | - | 49 | BUS8 | 3.3 | QFN68 | |

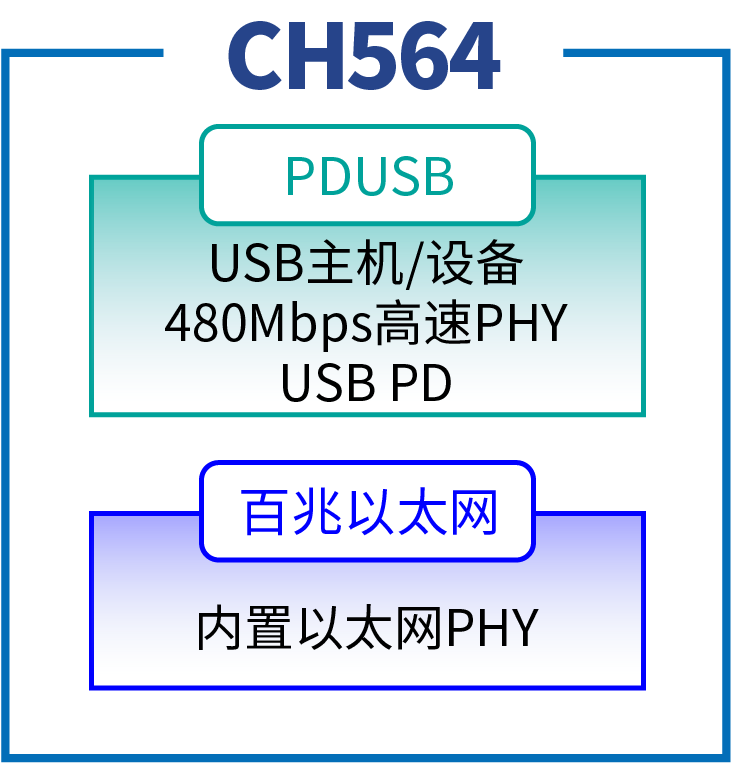

PDUSB 高速USB，内置PHY 百兆以太网，内置PHY | 120MHz | 448K | 64/96/128K | 480Mbps | 100M | - | - | - | - | 4 | 2 | 4*28b | 4/4 | 7*12b | 77 | SLV/XBUS Type-C PD | 3.3/5 | LQFP128/LQFP64M/QFN32 QFN26C3 |
